s-SNOM in Low-Temperature and High-Magnetic-Field Environments: How Nanoscale Optical Microscopy Enters Extreme Conditions?

Scattering-type scanning near-field optical microscopy (s-SNOM) can overcome the diffraction limit of conventional far-field optical microscopy, enabling the acquisition of local optical responses from materials at the nanoscale. This capability is particularly important for two-dimensional materials, strongly correlated materials, topological materials, and polariton systems, because many key physical phenomena do not solely manifest in macroscopic averaged signals but are hidden in domain structures, boundary states, defect regions, or local phase separation.

However, many crucial properties of quantum materials only emerge under extreme conditions such as low temperatures and high magnetic fields. For instance, superconducting transitions, metal-insulator transitions, quantum Hall states, magnetic-field-induced topological phase transitions, and low-temperature polariton propagation all need to be studied in environments far from room temperature and ambient pressure. Therefore, integrating s-SNOM with low-temperature and high-magnetic-field capabilities has become an important direction in the development of nano-optical characterization techniques.

Yet this is not simply a matter of "adding a cryostat to a microscope" or "placing the sample inside a magnet." Cryogenic high-field s-SNOM simultaneously involves challenges across multiple areas, including optics, cryogenics, scanning probes, magnetic field compatibility, vibration control, and sample protection. This article will introduce these instrumental challenges.

Why is cryogenic high-field s-SNOM needed?

In traditional transport, far-field spectroscopy, or magneto-optical measurements, the obtained result is often the averaged response over the entire sample area. For quantum materials with spatial inhomogeneity, such averaged signals may obscure local differences. For example, factors such as electrical contacts, stress, impurities, terraces, boundaries, or domain structures can alter the local electronic state at the nanometer or micrometer scale.

The cryogenic high-field THz-sSNOM system reported by Haeuser et al. [1] was precisely designed to acquire local terahertz near-field responses at liquid helium temperatures and under high magnetic field environments. This system operates at cryogenic temperatures with magnetic fields up to 5 T and has been applied to study the local magnetic field response of the topological semimetal ZrTe₅. Compared with conventional spatially averaged measurements, the THz near-field approach can probe local responses at the nanometer scale, thus providing a new experimental means for understanding spatial inhomogeneity in topological materials.

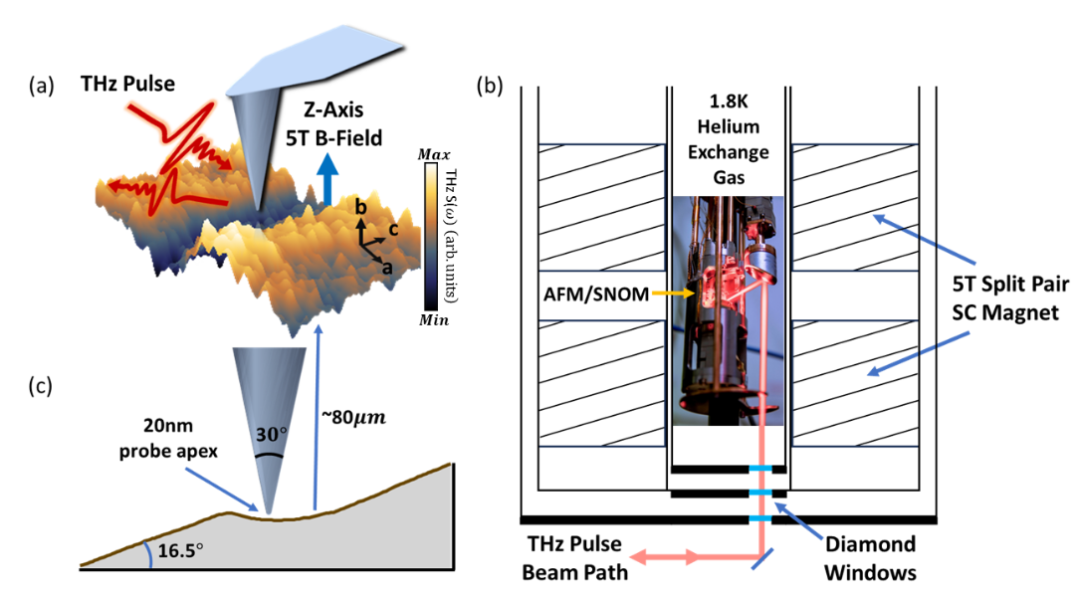

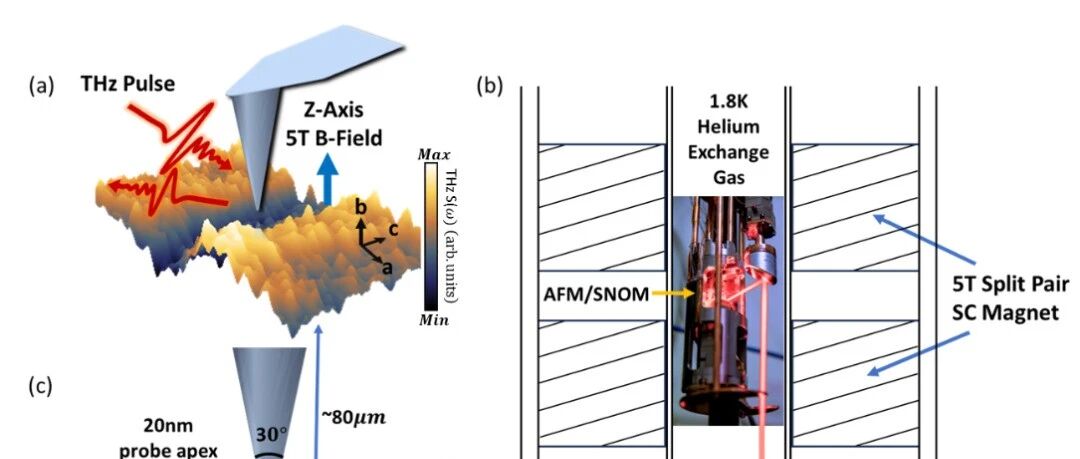

The cryogenic high-field THz-sSNOM system constructed by Haeuser et al. can operate at liquid helium temperatures with magnetic fields up to 5 T. THz pulses enter the cryostat chamber through a diamond window and are focused onto the AFM tip–sample interaction region. The tip locally enhances the far-field THz light, and the scattered signal carrying the sample's near-field response is then collected.

Challenge 1: Integrating a "nano-optical microscope" into a magnet bore

The first difficulty in cryogenic high-field s-SNOM is space.

Conventional s-SNOM systems typically require free-space optical paths, off-axis parabolic mirrors, a probe scanning unit, a sample stage, an interferometric detection optical path, and detectors. In contrast, the core area of a cryogenic high-field system is usually located within the bore of a superconducting magnet or at the center of a split-pair magnet, where space is very limited. The instrument must not only fit inside but also maintain nanometer-scale stable control between the probe and the sample.

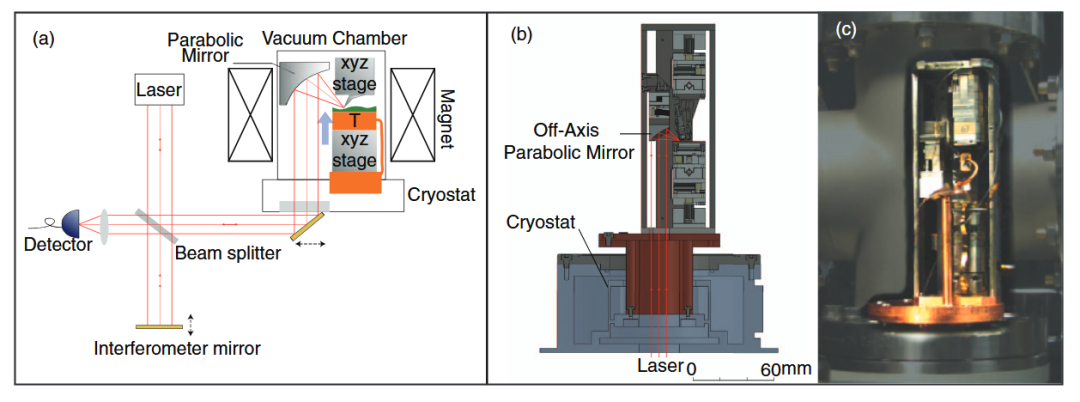

Yang et al. [2] reported a cryogenic s-SNOM system with an operating temperature range of approximately 20–500 K, compatible with magnetic fields up to 7 T. This system employs a compact design, integrating the AFM, sample stage, off-axis parabolic mirror, and free-space optical path within a confined space. Because the system must simultaneously meet requirements for broad-spectrum illumination, a large collection angle, cryogenic compatibility, and high-field compatibility, the overall structural design involves clear trade-offs.

This reflects a fundamental contradiction in cryogenic high-field s-SNOM: on the one hand, s-SNOM needs to efficiently illuminate the probe tip and collect weak scattered signals; on the other hand, the magnet bore, cryostat chamber, and vacuum structure severely restrict the size and placement of optical components.

The cryogenic s-SNOM system reported by Yang et al. integrates the AFM, sample stage, tip positioning unit, and off-axis parabolic mirror within a limited space to fit into a superconducting magnet bore. This design illustrates the balance among space constraints, optical path coupling, and mechanical stability required in cryogenic high-field s-SNOM.

Challenge 2: Optical path coupling and signal loss introduced by cryogenic windows

The near-field signal in s-SNOM is inherently very weak, especially in the infrared and terahertz spectral ranges, where the tip-scattered signal usually needs to be extracted through harmonic demodulation, interferometric detection, or time-domain sampling. Therefore, the efficiency of the optical path greatly affects system performance.

In a cryogenic system, the light beam must pass through vacuum windows, cryogenic radiation-shield windows, and sometimes through windows made of different materials such as diamond, ZnSe, KRS-5, or quartz. Each window introduces losses from reflection, absorption, and dispersion. For broadband infrared or THz systems, it is also necessary to select appropriate window materials and detectors based on the target wavelength range.

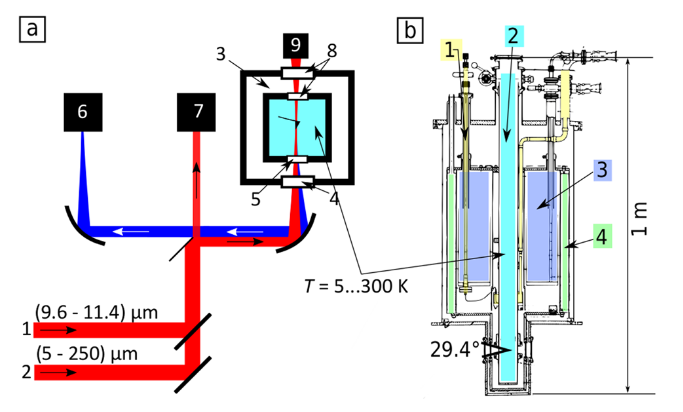

In the liquid-helium-temperature infrared near-field microscopy system reported by Lang et al. [3], infrared/THz light passes through an outer window and an inner diamond window to enter the cryogenic chamber and is then focused onto the tip–sample region; back-scattered light returns along the same path and is received by a detector. This system also needs to select different detectors—such as MCT, Ge:Ga, or a hot-electron bolometer—according to the wavelength.

Therefore, the optical design of cryogenic s-SNOM must not only "deliver light to the probe" but also address a series of problems including window transmittance, optical path stability, polarization control, tip illumination efficiency, and weak signal detection.

In the cryogenic infrared near-field microscopy system designed by Lang et al., infrared/THz light must pass sequentially through an outer window and an inner diamond window to enter the liquid-helium cryogenic chamber and is then focused onto the tip–sample region. The scattered light returns along the original path and is received by the detector, so window transmittance, optical path stability, and tip illumination efficiency all directly affect the near-field signal quality.

Challenge 3: Vibration, thermal drift, and scanning stability at cryogenic temperatures

s-SNOM is built upon AFM, where the distance control between the tip and the sample is typically at the nanometer or even sub-nanometer scale. Vibration and thermal drift in a cryogenic system directly affect near-field signal stability.

Potential disturbances in cryogenic systems include mechanical vibrations caused by liquid helium flow or cryocoolers, mechanical drift due to thermal contraction, relative displacement between the sample stage and the tip, and changes in piezoelectric scanning response induced by temperature variations. For long-duration scans, all these factors can degrade imaging quality.

Yang et al. [2] employed low-magnetic-susceptibility, low-thermal-expansion structural components in their system design and used independent tip and sample positioning stages to improve cryogenic imaging stability.

This problem becomes even more pronounced in cryogenic high-field THz-sSNOM. Haeuser et al. [1] specifically analyzed the influence of magnetic fields on AFM operation. They collected AFM topography images of a ZrTe₅ sample at 0 T, 0.3 T, 1.5 T, and 5 T, and used Sobel gradient and image registration methods to evaluate the repeatability of the topography under different magnetic field conditions. These results indicate that before discussing magnetic-field-induced near-field responses, one must first confirm that the AFM can maintain stable imaging under high magnetic fields.

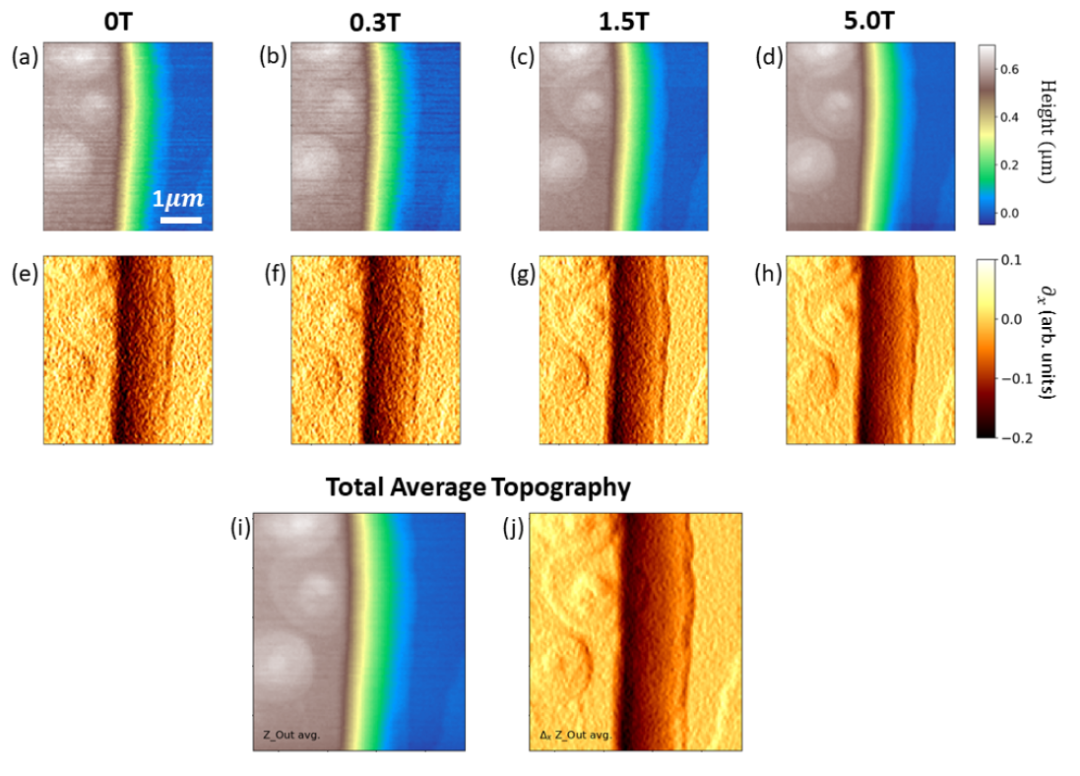

Haeuser et al. performed AFM topography imaging on ZrTe₅ at 0 T, 0.3 T, 1.5 T, and 5 T, and used the Sobel gradient method to highlight surface edges and details. The recurrence of topographic features under different magnetic fields demonstrates the need to first verify AFM scanning stability in high-magnetic-field environments.

Challenge 4: Material, structural, and electronic compatibility under high magnetic fields

High magnetic fields impose additional requirements on instrument design.

First, iron-containing components must be avoided as much as possible in the instrument's interior materials. Screws, brackets, sample stages, probe holders, cable shielding, and mechanical structures all need to be considered for magnetic field compatibility. Otherwise, magnetic forces, structural deformation, or vibrational coupling may occur during the field ramping process.

Second, piezoelectric scanners, displacement stages, sensors, and electrical circuits may also exhibit responses different from room-temperature behavior under cryogenic and high-field conditions. The scan range, step accuracy, and closed-loop stability may all change with temperature and magnetic field variations.

Haeuser et al. [1] employed a 5 T split-pair superconducting magnet, which orients the magnetic field perpendicular to the sample surface while leaving an optical access channel for the THz beam path. Such a configuration facilitates optical access under high magnetic fields but further constrains the spatial layout of the AFM and the optical path.

Therefore, the instrument design of cryogenic high-field s-SNOM is not a single-module optimization but an overall balance among cryogenics, magnetic fields, optical paths, and AFM stability.

Challenge 5: Local laser heating can alter low-temperature physical properties

In low-temperature experiments, "temperature" is not merely the value displayed on the temperature controller. In s-SNOM, the incident light is focused onto the tip–sample region, and the tip further enhances the local electromagnetic field, so photothermal effects can occur in the local sample region.

Lang et al. [3] used the ferroelectric–paraelectric phase transition of the multiferroic material GaV₄S₈ to assess the influence of local laser heating. The results indicate that in cryogenic near-field experiments, local illumination near the tip apex can cause the actual sample temperature to deviate from the sample stage temperature, thereby affecting phase transition measurements and studies of low-energy excitations.

This is especially important for cryogenic s-SNOM. The phase-transition temperatures, superconducting critical temperatures, or polariton losses of many systems under investigation are highly sensitive to temperature. If the local photothermal effect is not assessed, laser-induced heating changes might be mistakenly interpreted as intrinsic low-temperature material properties.

Therefore, cryogenic s-SNOM experiments typically require careful control of incident optical power, spot size, sample thermal conductivity, temperature settling time, and power-dependent behavior near phase transitions.

Challenge 6: Samples may become brittle at low temperatures and the probe may be contaminated

There is another easily overlooked issue in cryogenic s-SNOM: the sample itself may not withstand tapping-mode scanning.

s-SNOM typically operates in tapping mode, where the tip oscillates near the sample surface at a certain frequency. Although this mode is gentler than contact mode, the instantaneous local stress can still be very high given the nanoscale contact area. For certain van der Waals crystals or brittle materials, the fracture toughness decreases at low temperatures, and repeated tip tapping may cause surface damage.

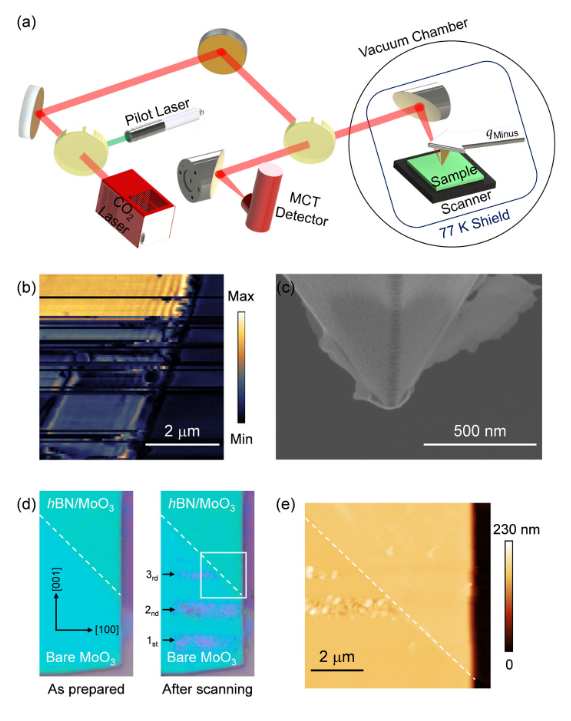

Hu et al. [4] studied this problem using α-MoO₃ as an example. They found that cryogenic tapping-mode s-SNOM scanning can cause degradation of the bare α-MoO₃ surface, and debris can adhere to the tip apex, leading to near-field signal attenuation. To address this problem, the authors proposed using few-layer hexagonal boron nitride (hBN) as a mechanical protective layer. hBN has high mechanical stability while remaining relatively optically passive in the target spectral range, thereby improving sample surface stability and minimally disturbing the phonon polariton response of α-MoO₃.

This shows that sample preparation for cryogenic high-field s-SNOM is not simply an extension of ordinary sample preparation. For brittle materials, layered materials, and polariton materials, the protective layer, scanning parameters, tip condition, and low-temperature mechanical properties all need to be considered together.

Hu et al. found that the bare α-MoO₃ surface tends to degrade during cryogenic tapping-mode s-SNOM scanning, and debris can also adhere to the tip apex, causing near-field signal attenuation. A few-layer hBN capping layer can improve sample surface stability while minimizing the impact on the phonon polariton response.

From instrumental challenges to application value

Although implementing cryogenic high-field s-SNOM is very difficult, the information it provides is difficult for traditional characterization methods to substitute.

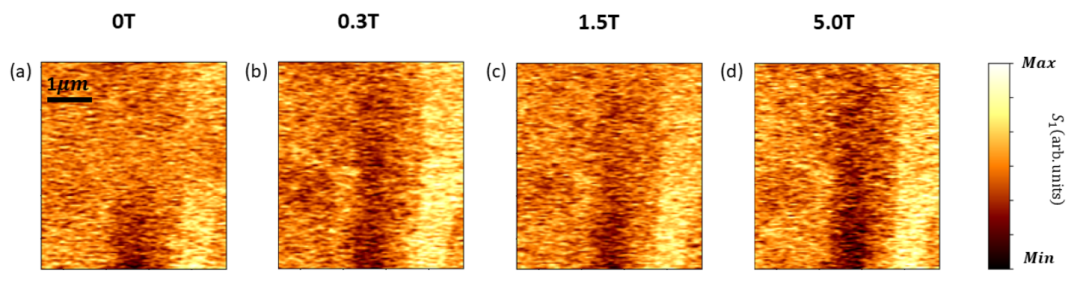

In topological materials research, magnetic fields can tune band structures, Landau levels, boundary states, and chiral transport responses. Haeuser et al. [1] applied cryogenic high-field THz-sSNOM to ZrTe₅, obtaining local near-field THz spectra and spatial variation information under strong magnetic fields, thus providing a new experimental approach for studying magnetic-field-induced responses in topological semimetals.

In strongly correlated materials, cryogenic s-SNOM can observe metal–insulator transitions, phase separation, and domain structure evolution. Yang et al. [2] used cryogenic s-SNOM to study the infrared Drude responses and domain structures associated with metal–insulator transitions in VO₂ and V₂O₃, offering spatially resolved information for understanding competing phases and mesoscale ordering.

In polariton research, low temperatures can reduce losses and modify phononic and electronic excitation behaviors, making polariton propagation, interference, and decay processes clearer. The study by Hu et al. [4] demonstrates that, with appropriate sample protection strategies, cryogenic s-SNOM can be further extended to the study of phonon polaritons in brittle van der Waals materials.

Cryogenic high-field THz-sSNOM can be used to probe the local near-field response of topological materials under magnetic fields. Compared with traditional transport or far-field spectroscopic measurements, this technique can further reveal nanoscale spatial inhomogeneity and magnetic-field-induced optical responses.

Summary

The core value of cryogenic high-field s-SNOM lies in advancing nano-scale optical imaging into the very environments where the key physical phenomena of quantum materials actually occur.

What it must address is not merely the two conditions of "low temperature" and "high magnetic field," but a whole set of system engineering challenges: how to integrate an AFM and free-space optical paths within a magnet bore, how to enable infrared/THz light to effectively illuminate the probe after passing through cryogenic windows, how to suppress the effects of vibration, drift, and magnetic fields on scanning stability, how to prevent local laser heating from altering the intrinsic state of the sample, and how to protect samples that become brittle at low temperatures and keep the probe clean.

It is precisely these challenges that make cryogenic high-field s-SNOM not merely a microscope, but a comprehensive experimental platform for research into quantum materials, topological states of matter, strongly correlated systems, and cryogenic polaritons.

With the ongoing development of cryogenic scanning probes, broadband infrared/terahertz light sources, high-field cryogenic systems, and nano-optical detection techniques, extreme-environment s-SNOM is expected to reveal even more local physical phenomena that are difficult to discover through macroscopic averaged measurements in the future.
